Ayol tirsak pnevmatik surish-

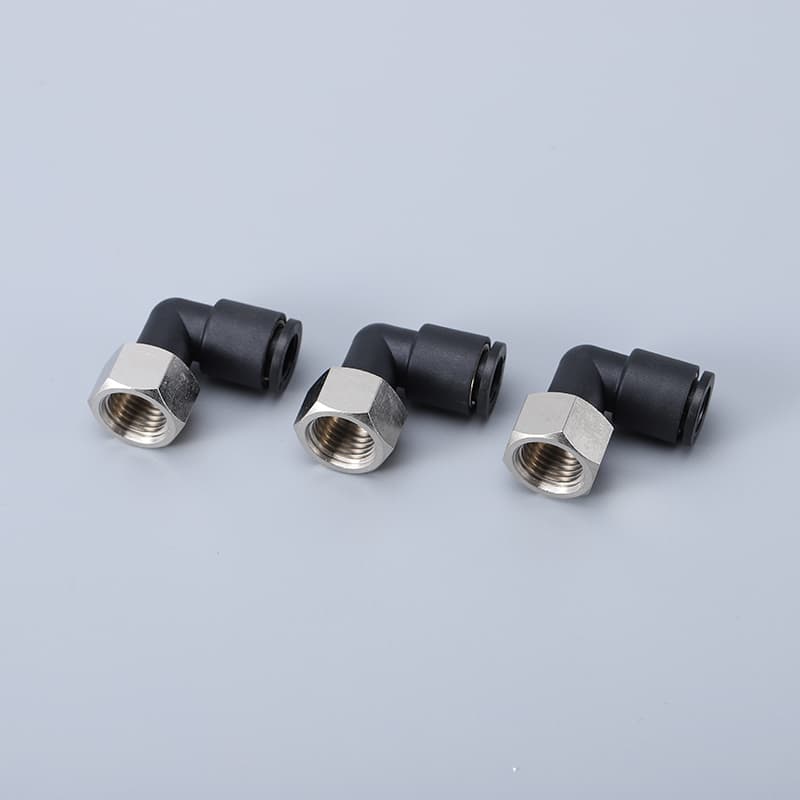

EPLF Ayol tirsagi 90 daraja toʻgʻri burchakli{1}}pnevmatik adapterdir. Bir uchi havo{4}}erkak havo klapanlari va tishli armaturalarni ulash uchun-nikel qoplamali guruchli ip, ikkinchi uchi esa pnevmatik trubkalar uchun standart surish-dir.
- Mahsulotni tanishtirish
Yuyao Eshiong Pipe Fittings Technologies Co., Ltd. Xitoyda ayollar tirsagini pnevmatik surish-bo‘yicha yetakchi ishlab chiqaruvchilar va yetkazib beruvchilardan biri hisoblanadi. Ishonchim komilki, zavodimizdan ulgurji katta hajmdagi mustahkam ayol tirsak pnevmatik surish-. Barcha tayyorlangan mahsulotlar yuqori sifat va raqobatbardosh narxga ega. Bundan tashqari, bepul namuna mavjud.
Bu ayol tirsagi tashqi erkak ip havo manbalarini va moslashuvchan quvurlarni 90 darajaga ulash uchun mo'ljallangan. U to'g'ridan-to'g'ri jihoz panellari, kollektor rozetkalari va yordamchi havo portlariga-o'rnatiladi. 90 graduslik burchakli sxema bo'g'inlar yaqinidagi quvurlarning egilish burilish kuchlanishini oldini oladi, vana orollarini tarmoqli havo yo'nalishida, avtomatlashtirish moslamalarining yordamchi havo chiqishlarida keng qo'llaniladi.
Ishlash parametri
|
Material |
Quvurlar mosligi |
O-RING |
Suyuqlik |
Ish bosimi |
Salbiy bosim |
Harorat |
|
Neylon |
PU shlangini joylashtiring |
NBR |
Havo |
0-1,0MPa |
-29,5 in Hg / -750 mmHg (10 Torr) |
32 ~ 140 daraja F / 0 ~ 60 daraja |
Mahsulot o'lchamlari:EPLF Ayol tirsakli pnevmatik surish-
(Xususiy oʻlchamlar soʻrov boʻyicha mavjud. Bu yerda koʻrsatilmagan texnik xususiyatlar uchun biz bilan bogʻlaning.)
|
Turi |
Model |
Turi |
Model |
Turi |
Model |
Turi |
Model |
||||
|
Naycha (mm) |
Ayol (R) |
Naycha (dyuym) |
Ayol (R) |
Naycha (dyuym) |
Ayol (NPT) |
Naycha (mm) |
Ayol (NPT) |
||||
|
EPLF04-M5 |
04 |
M5 |
EPLF5/32-01 |
5/32 |
1/8 |
EPLF5/32-N01 |
5/32 |
1/8 |
EPLF04-N01 |
04 |
1/8 |
|
EPLF04-M6 |
04 |
M6 |
EPLF5/32-02 |
5/32 |
1/4 |
EPLF5/32-N02 |
5/32 |
1/4 |
EPLF04-N02 |
04 |
1/4 |
|
EPLF04-01 |
04 |
1/8 |
EPLF3/16-01 |
3/16 |
1/8 |
EPLF3/16-N01 |
3/16 |
1/8 |
EPLF06-N01 |
06 |
1/8 |
|
EPLF04-02 |
04 |
1/4 |
EPLF3/16-02 |
3/16 |
1/4 |
EPLF3/16-N02 |
3/16 |
1/4 |
EPLF06-N02 |
06 |
1/4 |
|
EPLF06-M5 |
06 |
M5 |
EPLF1/4-01 |
1/4 |
1/8 |
EPLF1/4-N01 |
1/4 |
1/8 |
EPLF06-N03 |
06 |
3/8 |
|
EPLF06-M6 |
06 |
M6 |
EPLF1/4-02 |
1/4 |
1/4 |
EPLF1/4-N02 |
1/4 |
1/4 |
EPLF06-N04 |
06 |
1/2 |
|
EPLF06-01 |
06 |
1/8 |
EPLF1/4-03 |
1/4 |
3/8 |
EPLF1/4-N03 |
1/4 |
3/8 |
EPLF08-N01 |
08 |
1/8 |
|
EPLF06-02 |
06 |
1/4 |
EPLF1/4-04 |
1/4 |
1/2 |
EPLF1/4-N04 |
1/4 |
1/2 |
EPLF08-N02 |
08 |
1/4 |
|
EPLF06-03 |
06 |
3/8 |
EPLF5/16-01 |
5/16 |
1/8 |
EPLF5/16-N01 |
5/16 |
1/8 |
EPLF08-N03 |
08 |
3/8 |
|
EPLF06-04 |
06 |
1/2 |
EPLF5/16-02 |
5/16 |
1/4 |
EPLF5/16-N02 |
5/16 |
1/4 |
EPLF08-N04 |
08 |
1/2 |
|
EPLF08-01 |
08 |
1/8 |
EPLF5/16-03 |
5/16 |
3/8 |
EPLF5/16-N03 |
5/16 |
3/8 |
EPLF10-N01 |
10 |
1/8 |
|
EPLF08-02 |
08 |
1/4 |
EPLF5/16-04 |
5/16 |
1/2 |
EPLF5/16-N04 |
5/16 |
1/2 |
EPLF10-N02 |
10 |
1/4 |
|
EPLF08-03 |
08 |
3/8 |
EPLF3/8-01 |
3/8 |
1/8 |
EPLF3/8-N01 |
3/8 |
1/8 |
EPLF10-N03 |
10 |
3/8 |
|
EPLF08-04 |
08 |
1/2 |
EPLF3/8-02 |
3/8 |
1/4 |
EPLF3/8-N02 |
3/8 |
1/4 |
EPLF10-N04 |
10 |
1/2 |
|
EPLF10-01 |
10 |
1/8 |
EPLF3/8-03 |
3/8 |
3/8 |
EPLF3/8-N03 |
3/8 |
3/8 |
EPLF12-N01 |
12 |
1/8 |
|
EPLF10-02 |
10 |
1/4 |
EPLF3/8-04 |
3/8 |
1/2 |
EPLF3/8-N04 |
3/8 |
1/2 |
EPLF12-N02 |
12 |
1/4 |
|
EPLF10-03 |
10 |
3/8 |
EPLF1/2-01 |
1/2 |
1/8 |
EPLF1/2-N01 |
1/2 |
1/8 |
EPLF12-N03 |
12 |
3/8 |
|
EPLF10-04 |
10 |
1/2 |
EPLF1/2-02 |
1/2 |
1/4 |
EPLF1/2-N02 |
1/2 |
1/4 |
EPLF12-N04 |
12 |
1/2 |
|
EPLF12-01 |
12 |
1/8 |
EPLF1/2-03 |
1/2 |
3/8 |
EPLF1/2-N03 |
1/2 |
3/8 |
EPLF14-N01 |
14 |
1/8 |
|
EPLF12-02 |
12 |
1/4 |
EPLF1/2-04 |
1/2 |
1/2 |
EPLF1/2-N04 |
1/2 |
1/2 |
EPLF14-N02 |
14 |
1/4 |
|
EPLF12-03 |
12 |
3/8 |
EPLF14-N03 |
14 |
3/8 |
||||||
|
EPLF12-04 |
12 |
1/2 |
EPLF14-N04 |
14 |
1/2 |
||||||
|
EPLF14-01 |
14 |
1/8 |
EPLF16-N01 |
16 |
1/8 |
||||||
|
EPLF14-02 |
14 |
1/4 |
EPLF16-N02 |
16 |
1/4 |
||||||
|
EPLF14-03 |
14 |
3/8 |
EPLF16-N03 |
16 |
3/8 |
||||||
|
EPLF14-04 |
14 |
1/2 |
EPLF16-N04 |
16 |
1/2 |
||||||
|
EPLF16-01 |
16 |
1/8 |
|||||||||
|
EPLF16-02 |
16 |
1/4 |
|||||||||
|
EPLF16-03 |
16 |
3/8 |
|||||||||
|
EPLF16-04 |
16 |
1/2 |
|||||||||
Qadoqlash:
1.PE sumkasi va er-xotin gofrirovka qilingan karton qadoqlash;
2. Karton hajmi: 35 * 25 * 35 sm;
3. Packaging miqdori modellar orasida farq qiladi. Iltimos, mijozlarga xizmat ko'rsatish bilan tekshiring.
Asosiy xususiyat
Kompozit tuzilma: nikel{0}}qoplangan guruchli ayol ip boshi + vertikal trubkani aylantirish uchun korpusda plastik 90 graduslik egilgan surish-.
Standart M metrika va NPT imperial ichki ayol ip, barcha mos keladigan pnevmatik pnevmatik qismlarga- mos keladi.
Boy aralash mos keladigan kombinatsiyalar: 4 ~ 16 mm metrik naychalar bir nechta ayol ip o'lchamlari bilan birlashtirilgan.
Erkin{0}}tik turgan sirtga oʻrnatish dizayni, kollektor va yordamchi havo porti simlari uchun plastinkaning kirib borishi shart emas.
Kundalik parvarishlash va parvarish
- O'rnatishdan oldin trubkani toza kesib oling va tozalang.
- Ipni o'rtacha darajada torting; haddan tashqari-tortishdan saqlaning.
- Bosim/harorat o'zgargandan keyin qochqinlarni tekshiring.
- Faqat korroziy bo'lmagan{0}}suyuqliklar bilan foydalaning.
- Demontaj qilayotganda, bo'shatish halqasini bir tekis bosing va trubkani to'g'ridan-to'g'ri tortib oling.
