Erkaklar Run Tee Pnevmatik surish-Fitting

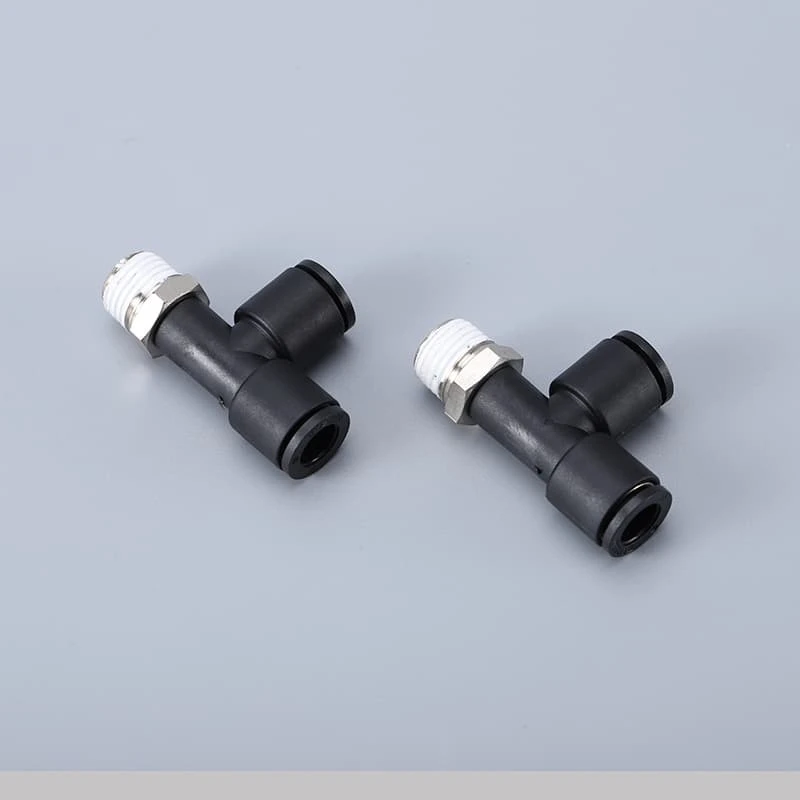

EPD Male Run Tee T-shaklidagi pnevmatik ajratgich bo'lib, asosiy chiziq va yon novdaga ega. Ikki nosimmetrik standart surish-bo‘g‘in uzluksiz magistral havo quvurini tashkil qiladi, yon tomonidagi bitta nikel- bilan qoplangan guruchli erkak ip esa teginish novdasi vazifasini bajaradi.
- Mahsulotni tanishtirish
Yuyao Eshiong Pipe Fittings Technologies Co., Ltd. Xitoyda pnevmatik pnevmatik surish-erkak ishlab chiqaruvchilari va yetkazib beruvchilaridan biridir. Ishonchim komilki, zavodimizdan ulgurji katta hajmdagi, bardoshli erkaklar uchun mo'ljallangan pnevmatik surish{4}}. Barcha tayyorlangan mahsulotlar yuqori sifat va raqobatbardosh narxga ega. Bundan tashqari, bepul namuna mavjud.
Bu yugurish tee uzluksiz asosiy quvur yo'lini saqlab qoladi va faqat bir tomondan yordamchi tarmoqni qo'shib qo'yadi, u uzoq asosiy havo relslarida, valf orolining magistral quvurlarida va avtomatlashtirish uskunasining asosiy gaz davrlarida keng qo'llaniladi, bu erda asosiy oqimni to'xtatmasdan qisman yordamchi gazni ulash kerak.
Ishlash parametri
|
Material |
Quvurlar mosligi |
O-RING |
Suyuqlik |
Ish bosimi |
Salbiy bosim |
Harorat |
|
Neylon |
PU shlangini joylashtiring |
NBR |
Havo |
0-1,0MPa |
-29,5 in Hg / -750 mmHg (10 Torr) |
32 ~ 140 daraja F / 0 ~ 60 daraja |
Mahsulot o'lchamlari:Fittingda EPD Male Run Tee Pnevmatik surish-
(Xususiy oʻlchamlar soʻrov boʻyicha mavjud. Bu yerda koʻrsatilmagan texnik xususiyatlar uchun biz bilan bogʻlaning.)
|
Turi |
Model |
Turi |
Model |
Turi |
Model |
Turi |
Model |
||||
|
Naycha (mm) |
Erkak (R) |
Naycha (dyuym) |
Ayol (R) |
Naycha (dyuym) |
Erkak (NPT) |
Naycha (mm) |
Erkak (NPT) |
||||
|
EPD04-M5 |
04 |
M5 |
EPD5/32-01 |
5/32 |
1/8 |
EPD5/32-N01 |
5/32 |
1/8 |
EPD04-N01 |
04 |
1/8 |
|
EPD04-M6 |
04 |
M6 |
EPD5/32-02 |
5/32 |
1/4 |
EPD5/32-N02 |
5/32 |
1/4 |
EPD04-N02 |
04 |
1/4 |
|
EPD04-01 |
04 |
1/8 |
EPD3/16-01 |
3/16 |
1/8 |
EPD3/16-N01 |
3/16 |
1/8 |
EPD06-N01 |
06 |
1/8 |
|
EPD04-02 |
04 |
1/4 |
EPD3/16-02 |
3/16 |
1/4 |
EPD3/16-N02 |
3/16 |
1/4 |
EPD06-N02 |
06 |
1/4 |
|
EPD06-M5 |
06 |
M5 |
EPD1/4-01 |
1/4 |
1/8 |
EPD1/4-N01 |
1/4 |
1/8 |
EPD06-N03 |
06 |
3/8 |
|
EPD06-M6 |
06 |
M6 |
EPD1/4-02 |
1/4 |
1/4 |
EPD1/4-N02 |
1/4 |
1/4 |
EPD06-N04 |
06 |
1/2 |
|
EPD06-01 |
06 |
1/8 |
EPD1/4-03 |
1/4 |
3/8 |
EPD1/4-N03 |
1/4 |
3/8 |
EPD08-N01 |
08 |
1/8 |
|
EPD06-02 |
06 |
1/4 |
EPD1/4-04 |
1/4 |
1/2 |
EPD1/4-N04 |
1/4 |
1/2 |
EPD08-N02 |
08 |
1/4 |
|
EPD06-03 |
06 |
3/8 |
EPD5/16-01 |
5/16 |
1/8 |
EPD5/16-N01 |
5/16 |
1/8 |
EPD08-N03 |
08 |
3/8 |
|
EPD06-04 |
06 |
1/2 |
EPD5/16-02 |
5/16 |
1/4 |
EPD5/16-N02 |
5/16 |
1/4 |
EPD08-N04 |
08 |
1/2 |
|
EPD08-01 |
08 |
1/8 |
EPD5/16-03 |
5/16 |
3/8 |
EPD5/16-N03 |
5/16 |
3/8 |
EPD10-N01 |
10 |
1/8 |
|
EPD08-02 |
08 |
1/4 |
EPD5/16-04 |
5/16 |
1/2 |
EPD5/16-N04 |
5/16 |
1/2 |
EPD10-N02 |
10 |
1/4 |
|
EPD08-03 |
08 |
3/8 |
EPD3/8-01 |
3/8 |
1/8 |
EPD3/8-N01 |
3/8 |
1/8 |
EPD10-N03 |
10 |
3/8 |
|
EPD08-04 |
08 |
1/2 |
EPD3/8-02 |
3/8 |
1/4 |
EPD3/8-N02 |
3/8 |
1/4 |
EPD10-N04 |
10 |
1/2 |
|
EPD10-01 |
10 |
1/8 |
EPD3/8-03 |
3/8 |
3/8 |
EPD3/8-N03 |
3/8 |
3/8 |
EPD12-N01 |
12 |
1/8 |
|
EPD10-02 |
10 |
1/4 |
EPD3/8-04 |
3/8 |
1/2 |
EPD3/8-N04 |
3/8 |
1/2 |
EPD12-N02 |
12 |
1/4 |
|
EPD10-03 |
10 |
3/8 |
EPD1/2-01 |
1/2 |
1/8 |
EPD1/2-N01 |
1/2 |
1/8 |
EPD12-N03 |
12 |
3/8 |
|
EPD10-04 |
10 |
1/2 |
EPD1/2-02 |
1/2 |
1/4 |
EPD1/2-N02 |
1/2 |
1/4 |
EPD12-N04 |
12 |
1/2 |
|
EPD12-01 |
12 |
1/8 |
EPD1/2-03 |
1/2 |
3/8 |
EPD1/2-N03 |
1/2 |
3/8 |
EPD14-N01 |
14 |
1/8 |
|
EPD12-02 |
12 |
1/4 |
EPD1/2-04 |
1/2 |
1/2 |
EPD1/2-N04 |
1/2 |
1/2 |
EPD14-N02 |
14 |
1/4 |
|
EPD12-03 |
12 |
3/8 |
EPD14-N03 |
14 |
3/8 |
||||||
|
EPD12-04 |
12 |
1/2 |
EPD14-N04 |
14 |
1/2 |
||||||
|
EPD14-01 |
14 |
1/8 |
EPD16-N01 |
16 |
1/8 |
||||||
|
EPD14-02 |
14 |
1/4 |
EPD16-N02 |
16 |
1/4 |
||||||
|
EPD14-03 |
14 |
3/8 |
EPD16-N03 |
16 |
3/8 |
||||||
|
EPD14-04 |
14 |
1/2 |
EPD16-N04 |
16 |
1/2 |
||||||
|
EPD16-01 |
16 |
1/8 |
|||||||||
|
EPD16-02 |
16 |
1/4 |
|||||||||
|
EPD16-03 |
16 |
3/8 |
|||||||||
|
EPD16-04 |
16 |
1/2 |
|||||||||
Qadoqlash:
1.PE sumkasi va er-xotin gofrirovka qilingan karton qadoqlash;
2. Karton hajmi: 35 * 25 * 35 sm;
3. Packaging miqdori modellar orasida farq qiladi. Iltimos, mijozlarga xizmat ko'rsatish bilan tekshiring.
Asosiy xususiyat
T kompozit tuzilmasi: asosiy portlarda ikki tomonlama surish-+ bitta lateral guruchli erkak ipni tekkizish shoxi.
Asosiy ichki kanal orqali to'liq, yon havoga tegish paytida magistral quvur liniyasida uzluksiz havo oqimini ushlab turadi.
Boy aralash mos keladigan kombinatsiyalar: bir nechta tashqi ip o'lchamlari bilan birlashtirilgan 4 ~ 16 mm metrik quvurlar.
Run tee sxemasi dizayni, qisman yordamchi tomondan havo tegizishni talab qiladigan uzun asosiy havo relslari uchun ideal.
Kundalik parvarishlash va parvarish
- O'rnatishdan oldin trubkani toza kesib oling va tozalang.
- Ipni o'rtacha darajada torting; haddan tashqari-tortishdan saqlaning.
- Bosim/harorat o'zgargandan keyin qochqinlarni tekshiring.
- Faqat korroziy bo'lmagan{0}}suyuqliklar bilan foydalaning.
- Demontaj qilayotganda, bo'shatish halqasini bir tekis bosing va trubkani to'g'ridan-to'g'ri tortib oling.
