Pnevmatik olti burchakli ulagich

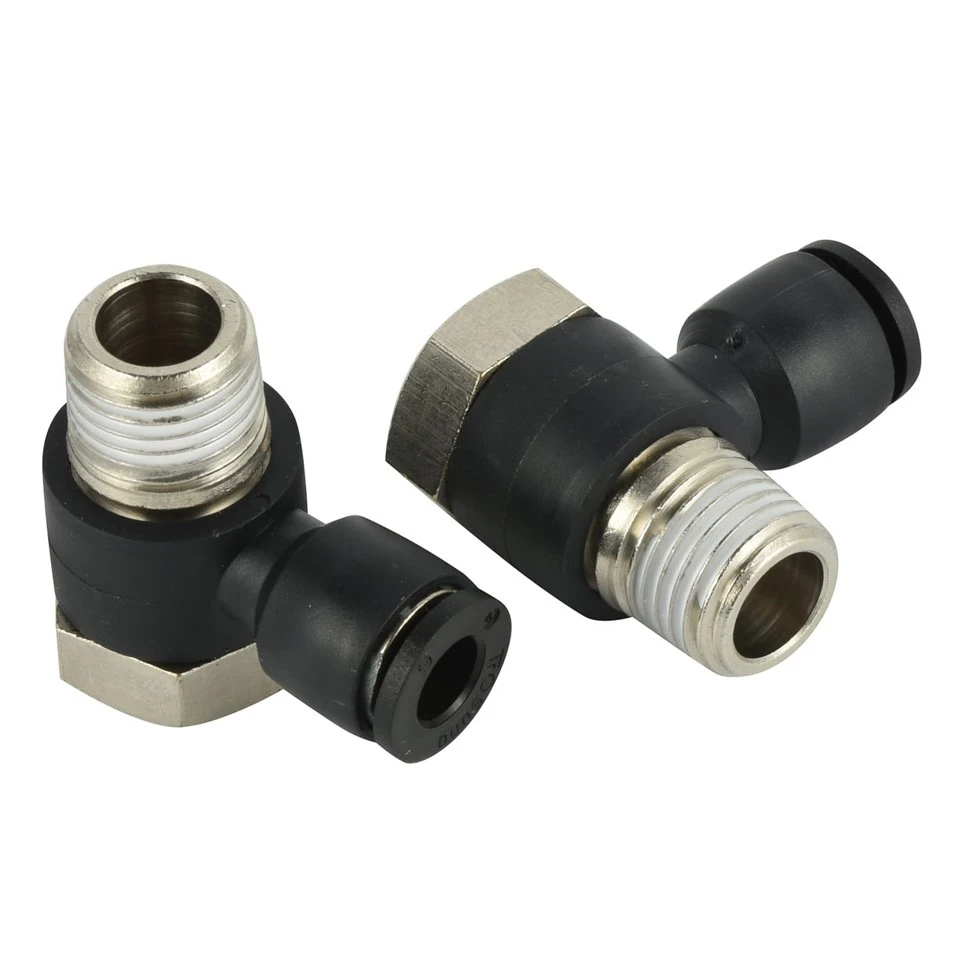

EPH pnevmatik Banjo tirsagi-sozlanishi 90 daraja oʻng burchakli-pnevmatik tirsakdir. Uning asosiy tanasi katta olti burchakli qulflash gaykani birlashtiradi. Bir uchi nikel bilan qoplangan guruchli erkak ipli vintlar bilan{5}}tsilindr va solenoid klapanlarning urg'ochi teshiklariga, ikkinchi tomonida havo trubkasi uchun-90 graduslik lateral surish mavjud.
- Mahsulotni tanishtirish
Yuyao Eshiong Pipe Fittings Technologies Co., Ltd. Xitoyda pnevmatik olti burchakli konnektorning etakchi ishlab chiqaruvchilari va yetkazib beruvchilaridan biridir. Iltimos, fabrikamizdan ulgurji ommaviy bardoshli pnevmatik olti burchakli ulagichga ishonch hosil qiling. Barcha tayyorlangan mahsulotlar yuqori sifat va raqobatbardosh narxga ega. Bundan tashqari, bepul namuna mavjud.
Olti burchakli yassilar kalitni mahkamlash va joylashtirish imkonini beradi, bu tor joylarda yo'nalishli simlar uchun ideal. U M metrik va NPT imperial erkak iplari bilan bog'langan 4 ~ 12 mm metrik quvurlarning ko'plab mos kombinatsiyalariga ega.
Ishlash parametri
|
Material |
Quvurlar mosligi |
O-RING |
Suyuqlik |
Ish bosimi |
Salbiy bosim |
Harorat |
|
Neylon |
PU shlangini joylashtiring |
NBR |
Havo |
0-1,0MPa |
-29,5 in Hg / -750 mmHg (10 Torr) |
32 ~ 140 daraja F / 0 ~ 60 daraja |
Mahsulot o'lchamlari:EPH olti burchakli konnektor pnevmatik surish-
(Xususiy oʻlchamlar soʻrov boʻyicha mavjud. Bu yerda koʻrsatilmagan texnik xususiyatlar uchun biz bilan bogʻlaning.)
|
Turi |
Model |
Turi |
Model |
Turi |
Model |
Turi |
Model |
||||
|
Naycha (mm) |
Erkak (R) |
Naycha (dyuym) |
Erkak (R) |
Naycha (dyuym) |
Erkak (NPT) |
Naycha (mm) |
Erkak (NPT) |
||||
|
EPH04-M5 |
04 |
M5 |
EPH5/32-01 |
5/32 |
1/8 |
EPH5/32-N01 |
5/32 |
1/8 |
EPH04-N01 |
04 |
1/8 |
|
EPH04-M6 |
04 |
M6 |
EPH5/32-02 |
5/32 |
1/4 |
EPH5/32-N02 |
5/32 |
1/4 |
EPH04-N02 |
04 |
1/4 |
|
EPH04-01 |
04 |
1/8 |
EPH3/16-01 |
3/16 |
1/8 |
EPH3/16-N01 |
3/16 |
1/8 |
EPH06-N01 |
06 |
1/8 |
|
EPH04-02 |
04 |
1/4 |
EPH3/16-02 |
3/16 |
1/4 |
EPH3/16-N02 |
3/16 |
1/4 |
EPH06-N02 |
06 |
1/4 |
|
EPH06-M5 |
06 |
M5 |
EPH1/4-01 |
1/4 |
1/8 |
EPH1/4-N01 |
1/4 |
1/8 |
EPH06-N03 |
06 |
3/8 |
|
EPH06-M6 |
06 |
M6 |
EPH1/4-02 |
1/4 |
1/4 |
EPH1/4-N02 |
1/4 |
1/4 |
EPH06-N04 |
06 |
1/2 |
|
EPH06-01 |
06 |
1/8 |
EPH1/4-03 |
1/4 |
3/8 |
EPH1/4-N03 |
1/4 |
3/8 |
EPH08-N01 |
08 |
1/8 |
|
EPH06-02 |
06 |
1/4 |
EPH1/4-04 |
1/4 |
1/2 |
EPH1/4-N04 |
1/4 |
1/2 |
EPH08-N02 |
08 |
1/4 |
|
EPH06-03 |
06 |
3/8 |
EPH5/16-01 |
5/16 |
1/8 |
EPH5/16-N01 |
5/16 |
1/8 |
EPH08-N03 |
08 |
3/8 |
|
EPH06-04 |
06 |
1/2 |
EPH5/16-02 |
5/16 |
1/4 |
EPH5/16-N02 |
5/16 |
1/4 |
EPH08-N04 |
08 |
1/2 |
|
EPH08-01 |
08 |
1/8 |
EPH5/16-03 |
5/16 |
3/8 |
EPH5/16-N03 |
5/16 |
3/8 |
EPH10-N01 |
10 |
1/8 |
|
EPH08-02 |
08 |
1/4 |
EPH5/16-04 |
5/16 |
1/2 |
EPH5/16-N04 |
5/16 |
1/2 |
EPH10-N02 |
10 |
1/4 |
|
EPH08-03 |
08 |
3/8 |
EPH3/8-01 |
3/8 |
1/8 |
EPH3/8-N01 |
3/8 |
1/8 |
EPH10-N03 |
10 |
3/8 |
|
EPH08-04 |
08 |
1/2 |
EPH3/8-02 |
3/8 |
1/4 |
EPH3/8-N02 |
3/8 |
1/4 |
EPH10-N04 |
10 |
1/2 |
|
EPH10-01 |
10 |
1/8 |
EPH3/8-03 |
3/8 |
3/8 |
EPH3/8-N03 |
3/8 |
3/8 |
EPH12-N01 |
12 |
1/8 |
|
EPH10-02 |
10 |
1/4 |
EPH3/8-04 |
3/8 |
1/2 |
EPH3/8-N04 |
3/8 |
1/2 |
EPH12-N02 |
12 |
1/4 |
|
EPH10-03 |
10 |
3/8 |
EPH1/2-01 |
1/2 |
1/8 |
EPH1/2-N01 |
1/2 |
1/8 |
EPH12-N03 |
12 |
3/8 |
|
EPH10-04 |
10 |
1/2 |
EPH1/2-02 |
1/2 |
1/4 |
EPH1/2-N02 |
1/2 |
1/4 |
EPH12-N04 |
12 |
1/2 |
|
EPH12-01 |
12 |
1/8 |
EPH1/2-03 |
1/2 |
3/8 |
EPH1/2-N03 |
1/2 |
3/8 |
|||
|
EPH12-02 |
12 |
1/4 |
EPH1/2-04 |
1/2 |
1/2 |
EPH1/2-N04 |
1/2 |
1/2 |
|||
|
EPH12-03 |
12 |
3/8 |
|||||||||
|
EPH12-04 |
12 |
1/2 |
|||||||||
Qadoqlash:
1.PE sumkasi va er-xotin gofrirovka qilingan karton qadoqlash;
2. Karton hajmi: 35 * 25 * 35 sm;
3. Packaging miqdori modellar orasida farq qiladi. Iltimos, mijozlarga xizmat ko'rsatish bilan tekshiring.
Asosiy xususiyat
Olti burchakli tekis joylashish dizayni, ishonchli vibratsiyaga qarshi qulflash momentini qo'llash uchun qulay kalitni mahkamlash.
Standart M metrik va NPT imperial erkak ip.
Tor cheklangan joylar uchun mo'ljallangan.
Kundalik parvarishlash va parvarish
- O'rnatishdan oldin trubkani toza kesib oling va tozalang.
- Ipni o'rtacha darajada torting; haddan tashqari-tortishdan saqlaning.
- Bosim/harorat o'zgargandan keyin qochqinlarni tekshiring.
- Faqat korroziy bo'lmagan{0}}suyuqliklar bilan foydalaning.
- Demontaj qilayotganda, bo'shatish halqasini bir tekis bosing va trubkani to'g'ridan-to'g'ri tortib oling.
